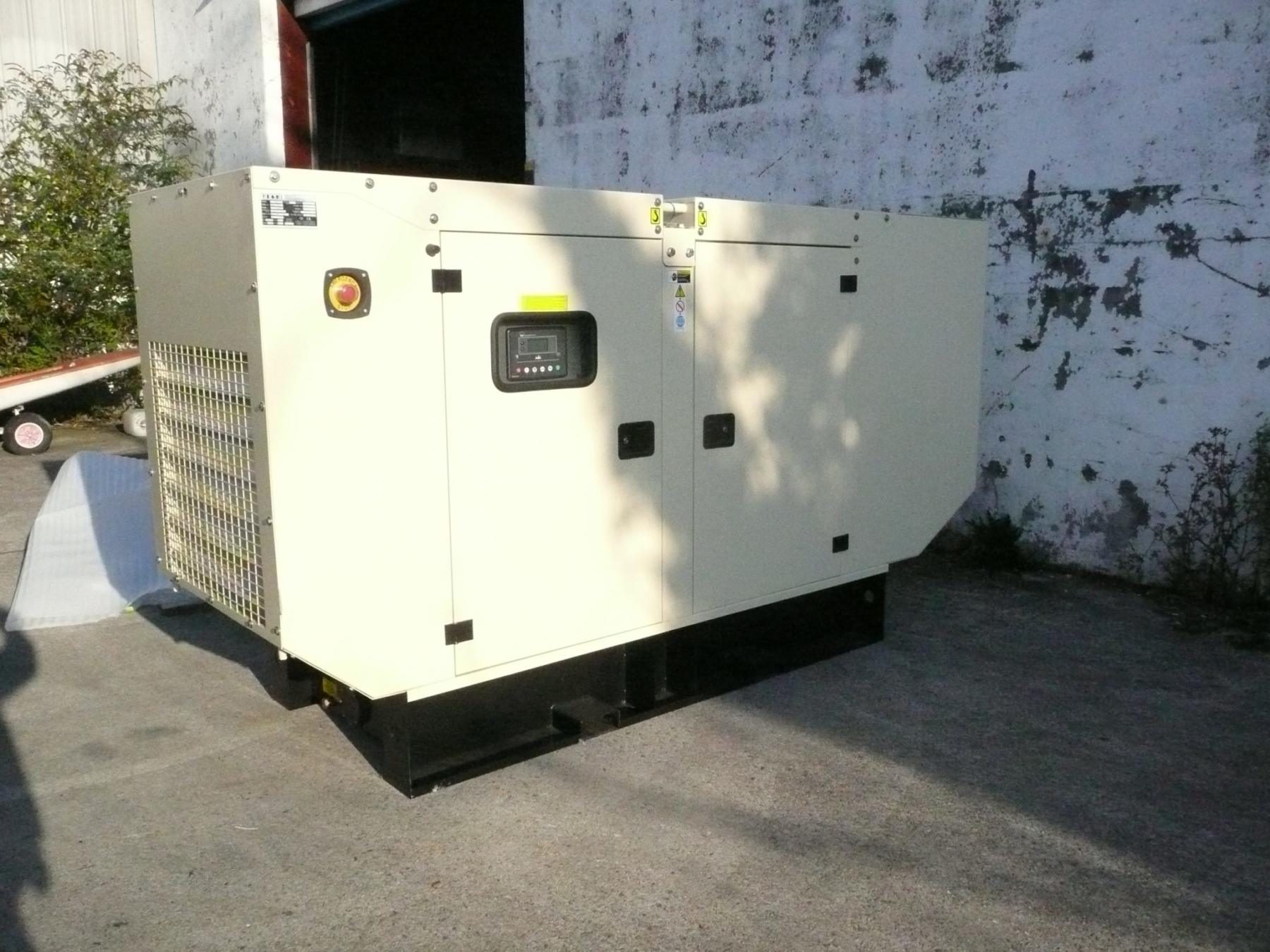

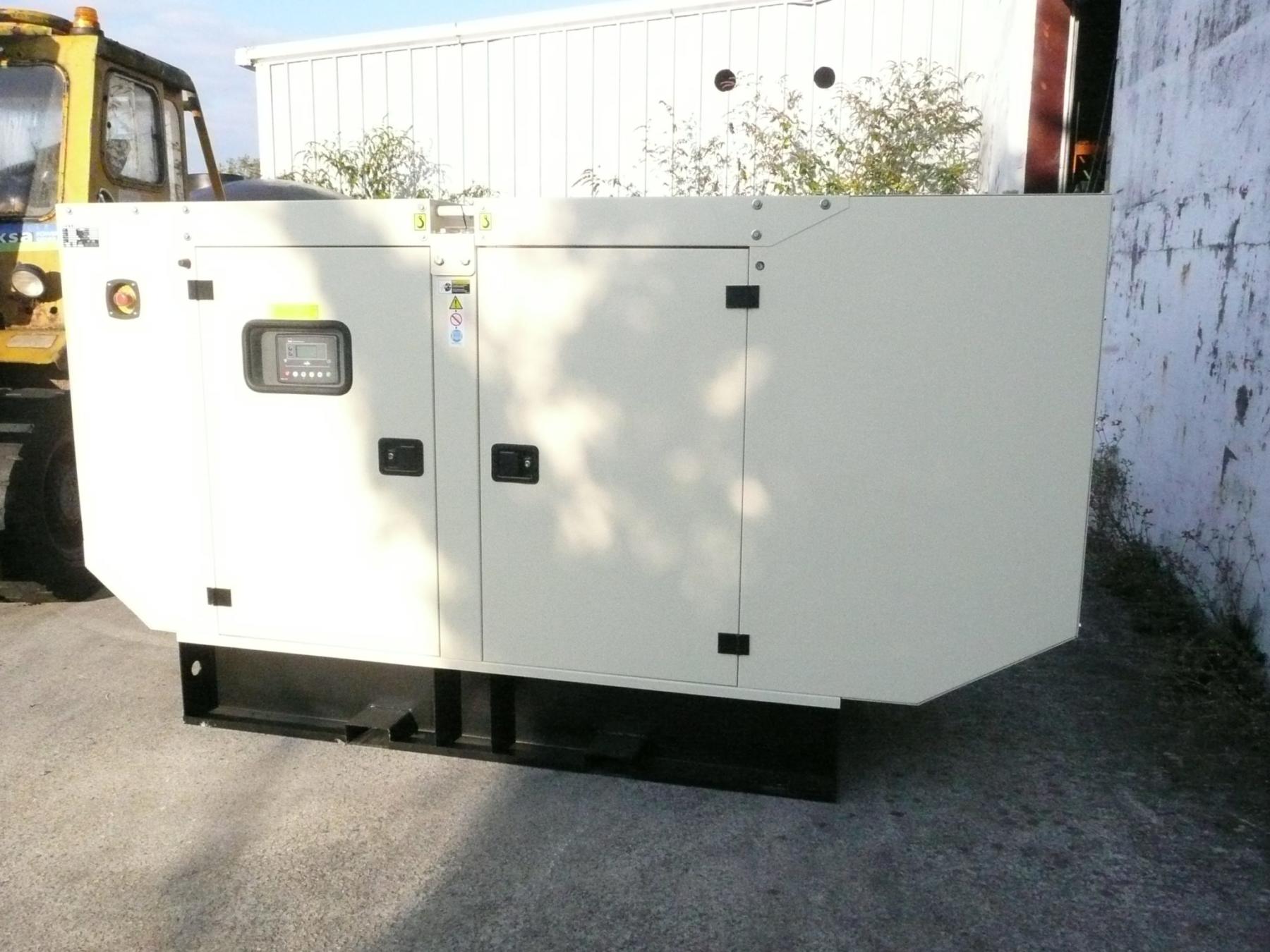

PERKINS DIESEL GENERATOR 88KVA

£10,295.00

Suitable for both prime and standby applications, this super-silent generator is remarkable value at this price. The generator has mains monitoring capability, and when used in conjunction with an ATS, provide a fully automatic mains failure back up solution. Using only quality branded components, this generator is designed to be reliable and long lasting.

  • PERKINS DIESEL ENGINE
  • SUPER-SILENT WEATHERPROOF ENCLOSURE
  • STAMFORD ALTERNATOR
  • DSE AUTO CONTROL
  • COMPREHENSIVE UK WARRANTY
  • IN STOCK NOW

Description

Our Perkins Diesel generator made by are one of the world’s top 5 generator set manufacturers. The UK subsidiary has been trading from the Midlands for over 20 years and is part of a worldwide company responsible for the manufacture of 24,000 sets per year. The generator sales & servicing company is proud to be an approved dealer and can verify the quality of product and after sales service.

Generators are fully sound attenuated in a weather protected canopy to ensure a quite operation, have steel welded full length base frames with integral diesel base tank capable of 8-12 hours running depending on load. Base tank is fully bunded to ensure containment of any fluid overspills or leaks. Integrated lifting points and fork lift pockets for ease of moving or situating. External emergency stop switch and lockable doors for safety.

CE certified and ISO9001 Quality Assured and with a comprehensive UK and global warranty.

PERKINS 88KVA
PERKINS DIESEL ENGINE
MODEL: 1104A-44TG2
CYLINDER: 4 CYLINDER TURBO
FUEL USAGE AT 100% LOAD: 18 LTRS PER HOUR
FUEL USAGE AT 50% LOAD: 10 LTRS PER HOUR
COOLING: WATER

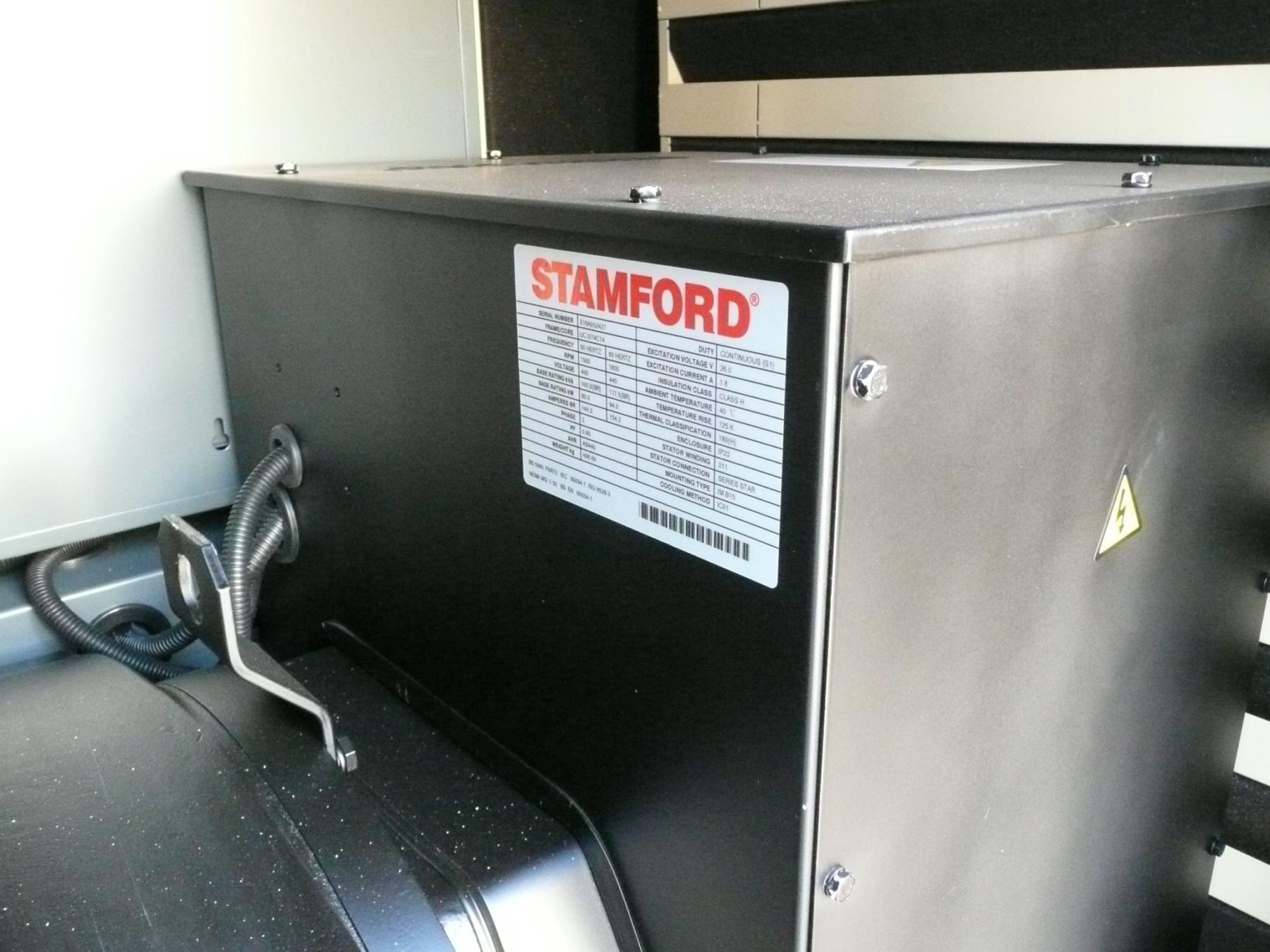

STAMFORD ALTERNATOR
MAX RATING (ESP): 88KVA – 70KW
PRIME RATING (PRP): 80KVA – 64KW
AMPS: 127 AMPS
PHASE: 3
VOLTS: 400V AND 230V
HZ: 50

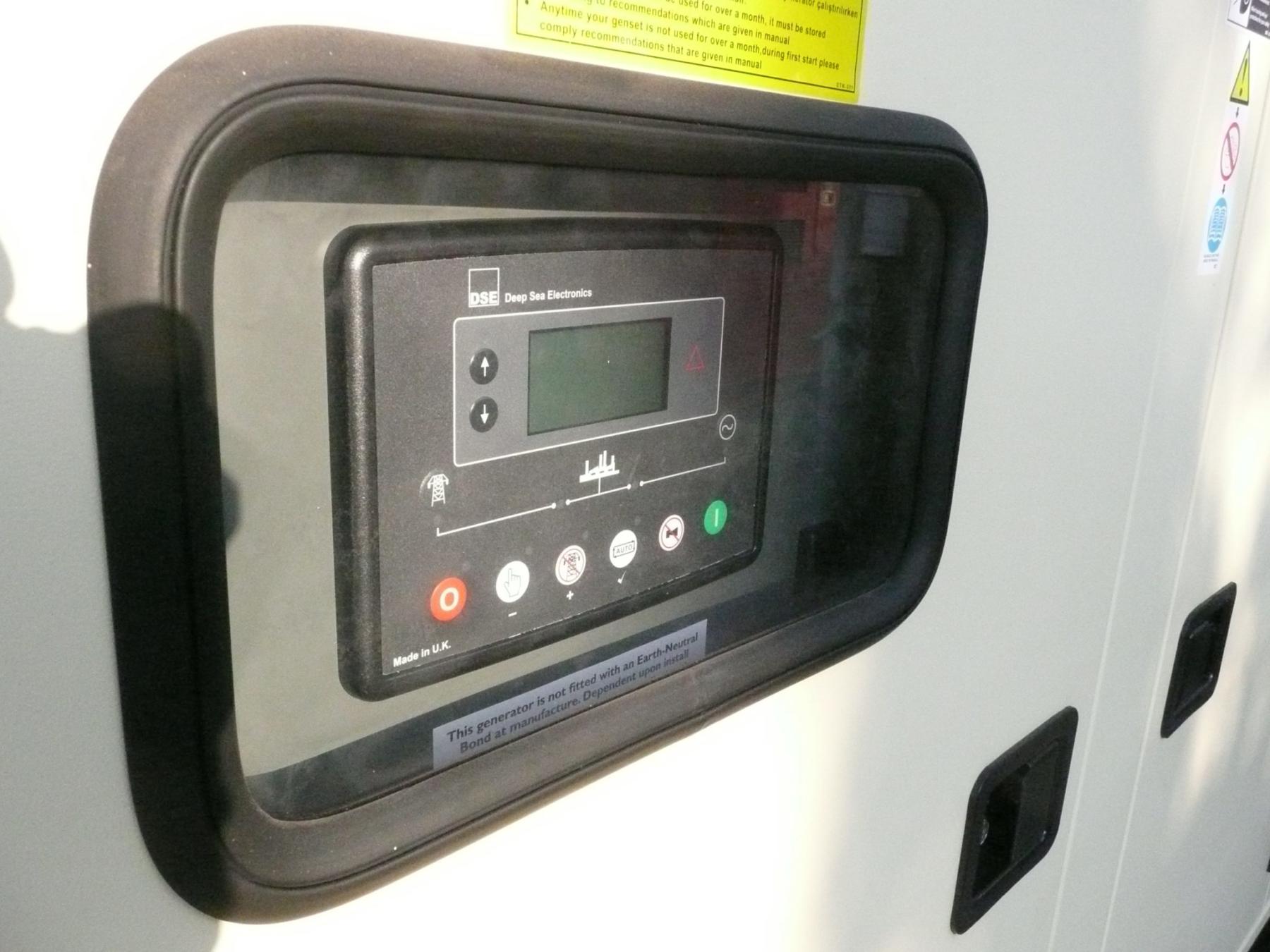

DEEP SEE ELECTRONICS AUTO CONTROL DSE 6020 WITH 12V BATTERY CHARGER
AUTO FUNCTION:
DSE 6020 MAINS MONITORING, IN THE EVENT OF MAINS FAILURE/RETURN THE GENERATOR WILL START/STOP AUTOMATICALY (USED INCONJUNCTION WITH AN ATS)
CONTACT FREE DIGITAL INPUTS FOR REMOTE START FROM ANOTHER DEVICE OR TIMER.

PERFORMANCE METERING:
VOLTS, AMPS, HERTZ, BATTERY, OIL PRESSURE, ENGINE TEMPERATURE, ENGINE HOURS.
ALARMS: OVER/UNDER SPEED, OVER/UNDER VOLTS/CURRENT, LOW BATTERY VOLTS, OIL PRESSURE, TEMPERATURE, EMERGENCY STOP.

GENERATOR ALARMS/SHUTDOWN:
OVER/UNDER SPEED/VOLTS/CURRENT, LOW BATTERY VOLTS, HIGH TEMPERATURE, EMEGENCY STOP.

LED INDICATORS:
MAINS AVAILABLE, GENERATOR AVAILABLE, MAINS ON LOAD, GENERATOR ON LOAD.





PERKINS 88KVA SPECIFICATION DOWNLOAD

pdf-iconPERKINS GENERATOR 88KVA SPECIFICATION
pdf-icon DSE 6020 AUTO CONTROL
